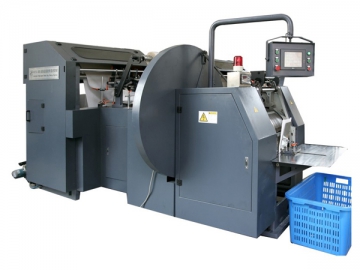

HD-400A High Speed Paper Food Bag Machine

HD-400A High Speed Paper Food Bag Machine
HD-400A High Speed Paper Food Bag Machine
HD-400A High Speed Paper Food Bag Machine
HD-400A High Speed Paper Food Bag Machine
HD-400A High Speed Paper Food Bag Machine
Request a Quote

The HD-400A high speed paper food bag machine is the updated version of HD-400 paper bag making machine. It is ideal for making various kinds of paper bags for both staple food and non-staple food.

Features
1. The automatic paper bag making equipment is applicable for 40-80gsm paper.
2. The bag length can be adjusted through the operation on the human-computer interface.
3. Under the control of PLC, the servo system of the high speed paper food bag machine is capable of controlling the bag length freely within certain scope.
4. Accurate tracking system supports automatic tracking.
5. With variable frequency speed control system, the paper bag machinery can complete gelatinizing, shaping, material feeding, photoelectric tracking, length measuring, cutting, countering, and finished product discharging, automatically.
6. The high speed paper food bag machine can manufacture the paper bag in any length without troublesome changing of gear.

Technical Parameters

1. Raw Material: 40-80gsm paper
2. Paper Bag Length: 160-440mm
3. Paper Bag Width: 80-250mm
4. Paper Bag Side Width: 20-100mm
5. Paper Roll Width: 230-720mm
6. Production Capacity: 100-400pcs/min. The production speed of the high speed paper food bag machine depends on paper, glue and the skill of worker.
7. Production Capacity for Paper Bag with Thin Film: 80-150pcs/min (Hot-melt adhesive)
8. Max. Paper Roll Dia.: 1200mm
9. Paper Core Diameter: 76mm
10. Total Power: 10kW
11. Glue Type: water-based adhesive, hot-melt glue
12. Machine Weight: 3500kg
13. Power Supply: 380±10V, 50Hz, 3-phase 4-wire
14. Overall Dimensions: 4500mm×1500mm×2100mm
15. Operating Space: 6000×3000×2100mm
16. Operator: 1

Configuration of High Speed Paper Food Bag Machine
    1. 1.Paper feeding device
      2.Magnetic powder braking system
      3.Motor for photoelectric correction system
      4.Tension controller
      5.Hand wheel
      6.Glue box
      7.Hand lever for glue scraper
      8.Gelatinizing wheel
      9.Warning light
      10.Hand wheel
      11.Paper feeding roller
      12.Photoelectric tracker
    1. 13.Paper bag forming device
      14.Stand for paper bag forming device
      15.Hand wheel
      16.Hand lever
      17.Upper conveying roller
      18.Lower conveying roller
      19.Cutter
      20.Adjustment lever
      21.Hand lever
      22.Glue tank
      23.Hand wheel
      24.Glue feeding device
      25.Edge folding unit
    1. 26.Bag bottom sticking roller
      27.Hub
      28.Control box
      29.Proximity switch
      30.Cutting knife
      31.Hand wheel
      32.Servo motor
      33.Main servo motor
      34.Electric appliance box
      35.Photoelectric correction system
      36.Control box for photoelectric correction system
      37.Lubrication pump
