Request a Quote

The multifunctional biscuit production line is designed to produce both hard and soft biscuits. To meet unique customer requirements, TG Machine offers a variety of multifunctional biscuit production lines in different configurations and capacities, with a maximum capacity of 1500kg/hour. In addition, we also offer a variety of biscuit mold shapes for the production of different biscuit shapes.

  • Vertical dough mixer
  • Horizontal dough mixer
  • Material feeder
  • Dough conveyor
  • Laminator
  • Dough roller
  • Material recycling device
  • Roll cutting machine
  • Rotary molder
  • Divider
  • Condiment spreader
  • Furnace charging conveyor
  • Wire mesh belt conveyor
  • Tunnel oven
  • Furnace discharge conveyor
  • Oil spray machine
  • Vibrating spreader
  • Turning conveyor
  • Cooling conveyor
  • Star wheel stacker
  • Picking conveyor
  • Packaging machine
Features
  • The production line runs continuously for a high production capacity and quick recoup on initial investment costs.
  • It is a fully automatic production line requiring very minimal human interference.
  • Through the use of different, easy to change molds, the production line produces a variety of biscuit types.
  • We will customize mold for you according to your requirements.
  • The production line components are manufactured here in house to ensure quality and a quick supply of spare parts.
Standard

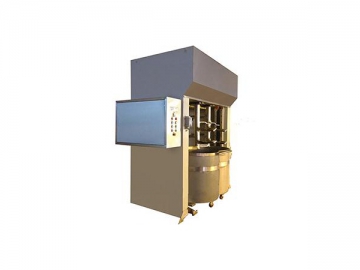

  • Dough mixer
    The dough mixer is designed to mix different dough types with a maximum capacity of up to 500kg. This machine is customizable according to your requirements.
  • Condiment spreader
    This machine is designed for spreading condiments such as salt, sugar, sesame seeds, and nut slices on the biscuit blank surface to improve the taste.
  • Material recycling device
    It is designed to recycle rest material after hard biscuit formation..
  • Furnace charging conveyor
    This machine conveys the formed biscuit blank to the oven while rejecting any that are unqualified. It will also recycle unused condiments such as salt, sugar, sesame seeds, and nut slices.

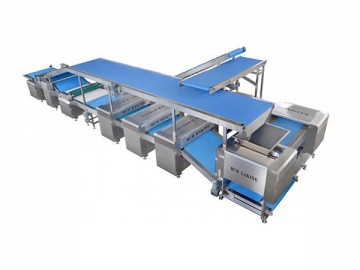

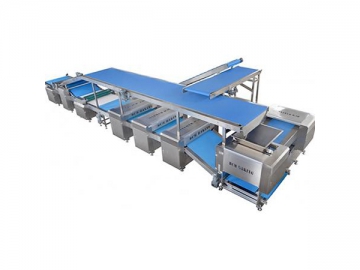

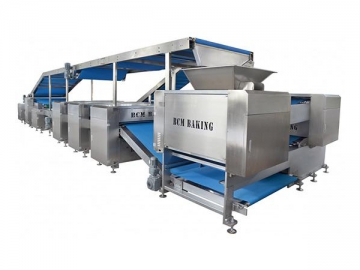

Laminator

The laminator completes stressing, powdering, and laminating processes to create layered biscuits. The dough width and dough sheet layers are easy to set, while parameters such as speed and dough thickness are clearly displayed on the screen.

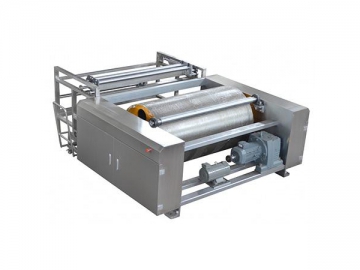

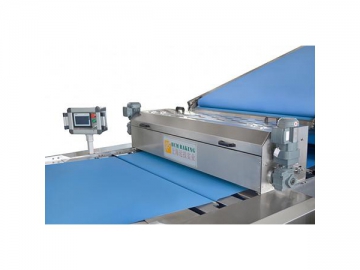

Rolling machine

The machine is used for rolling dough to specific thicknesses, ensuring the dough sheet is even and elastic. The roller is made of an alloy steel with a high hardness and no deformation. The conveyor belt is equipped with an automatic tensioning devise and automatic deviation rectification device to ensure reliable conveyance. Speed and dough thickness parameters are clearly displayed on the screen and easy to adjust.

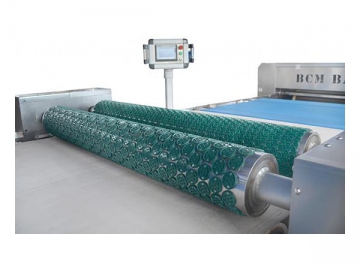

Forming machine

The forming machine is designed to form different biscuit types. It carries out a variety of processes, including printing, forming, and demolding. Material feeding and forming speed are both adjustable, while parameters such as speed and distance between the roller and roller mold are clearly displayed on screen. The conveyor belt is equipped with an automatic tensioning device and automatic deviation rectifying device to ensure a reliable conveyance performance.

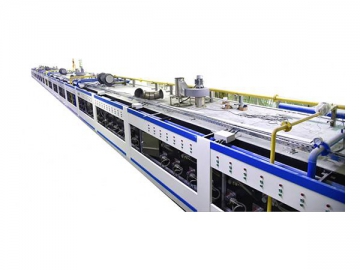

Tunnel oven

The tunnel oven is designed for baking biscuits, breads, cakes, and other doughy foods. We offer a variety of tunnel ovens for the production of different biscuit types, including hot air circulating ovens, wood or gas fired ovens, and infrared ovens. The tunnel oven’s length and width are customizable according to customer requirements.

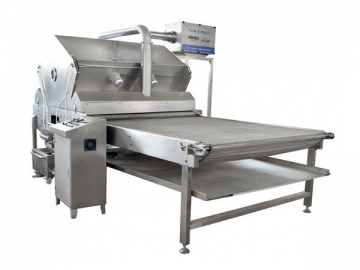

Oil spray machine

The oil spray machine carries out a high speed, foggy oil spray on biscuits to improve luster, flavor and taste. The oil tank is warmed via electric heated water and an adjustable temperature. The oil spray machine uses a filter to recycle used oil after spraying, and is made of 304 stainless steel for an excellent cleanliness and hygienic performance.

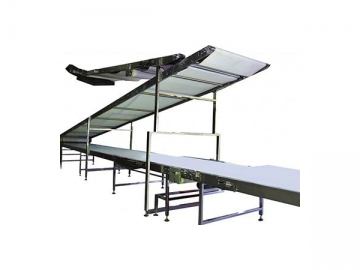

Conveyor equipment
