This product has been discontinued and removed from our shelves.

The aluminum billets that the aluminum profiles manufacturers bought from the suppliers are often in long sizes, which are not always suitable for furnace preheating, so saw cutting is a necessary step before preheating of the aluminum materials.

ShiJia is able to provide aluminum billet sawing solutions to supply customers with the desired aluminum billet sizes, then, the aluminum billet is available in a preheating process. This aluminum sawing solution can be used in an independent workshop, or be used as a procedure prior to the preheat furnace process, in which, after putting the aluminum billet on the work table, starting the aluminum sawing machine, which features automatic billet cut-to-length and stacking, available in providing aluminum billets with customized length to the customers.

Basic Parameters

Diameter of aluminum billet: 90-600mm
Cutting time: no more than 40s/aluminum billet
Conveying method: automatic convey
Cut-to-length mode: Automatic cut-to-length

Features

  • The aluminum billet saw machine uses a roller conveyor, which is available in automatic conveying of aluminum billets;
  • It is designed with the aluminum chips collecting machine, available for automatic aluminum chips collection, effectively avoiding waste of aluminum materials.
  • The aluminum sawing machine features automatic aluminum billets saw cutting, achieving high saw cutting efficiency.
  • Manipulator is available in automatic aluminum billets collection, improving the collecting efficiency of the aluminum billets.

Construction

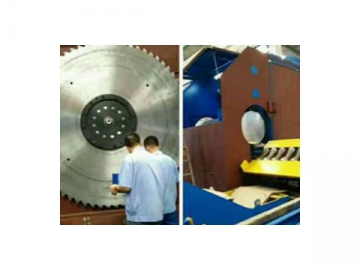

Billet sawing machine
The billet sawing machine is designed for aluminum billets saw cutting, which is available in automatic operation based on the predefined values.


Roller conveyor
The aluminum billets, after being put on the roller conveyor, will be conveyed to the saw cutting machine later for cutting.


Manipulator
The self-developed collecting manipulator here at our company is able to collect and stack the cut aluminum billets.


Aluminum chips recovery unit
Each aluminum sawing machine is equipped with an aluminum chips recovery unit, avoiding materials waste.


As the aluminum extrusion equipment used by customers features different production capacity, the diameters of the aluminum billets also vary. The saw blades used for sawing must be consistent with aluminum billets with proper thickness, and if used inappropriately, there will be quick consumption of the saw blades. We are able to customize various automatic aluminum billets sawing machines based on the aluminum extrusion solutions with different production capacity.

600-1450T Aluminum extrusion machine
Aluminum sawing solutions here at our company is available in aluminum billets sawing with the diameters ranging from 90-254mm.

1650-2000T aluminum extrusion machine
The automatic aluminum saws produced by our company can achieve 90-254mm diameters of the aluminum billets sawing.

2500-3600T aluminum extrusion machine
The automatic aluminum saws here at our company are able to cut the aluminum billets in 305-600mm diameters.

4000-6000T aluminum extrusion machine
The automatic aluminum extrusion sawing machines designed by our company are available in 305-600mm-diameter aluminum billets.
