1. Roll Coiler Machine (Horizontal)

Features of the 1-roll coiler include:
Rigid frame, follow up roll, feed rolls, oil bath gearbox drive,
entry guide system with pneumatic clutch, and horizontal coiling configurations

2. Expander & Cutting
  • An operator will manually load a ring coiler onto the tooling.
  • The operator will press palm buttons to start the expanding and cutting cycle.
  • The ring coiler will be cut to single ring.
  • The operator will manually unload the rings from the tooling.

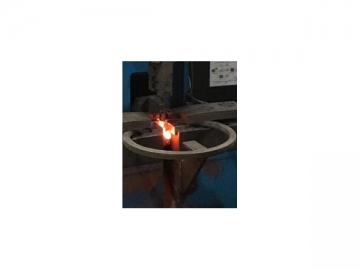

3. Butt Welding Machine
  • Flash butt welder and flashless resistance butt welder. Equipped with servo hydraulic drive.
  • PLC touch screen control adjustment curve
  • Servo control
  • Beryllium bronze electrode
4. Trimmer

This slag planer uses a hydraulic oil cylinder to apply force for slag planning with a simple structure and stable working conditions. The planer tool’s position is easily adjustable, and the single cylinder clamping is equipped with a tin bronze guide rail, and multi-point automatic lubrication, while the coil iron filing control is equipped with a slag chip removal mechanism, and quick-change tool holder mechanism.

5. 4 Torches MIG Assembling Welding Machine
    Specifications
  • Gas: -Mix of gas for arc welding process: 83% Ar and 17% CO2;
  • Wire: - Wire diameter: 1,0 or 1,2 mm;
    Wire feeder and Welding Power – Panasonic or Lincoln
  • Torch: - Quantity: 4
    Adjustment of the torches: adjustment in three axis (x, y and z)
    Welding torch –Panasonic/ BINZEL
  • Torch Support
    Strong, durable and precise structure
    Easy positioning system adjustment of the torches Eject cylinder: - After welding, the ring is unloading by the eject cylinder
    Provide 2 large, lateral windows and doors to allow for easy operator access
