Request a Quote
Application

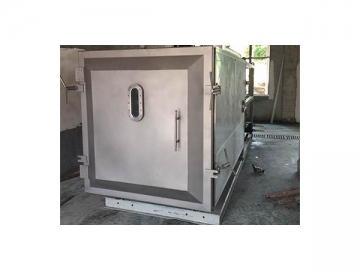

The BLK100kg lyophilization equipment freeze dryer features a capacity of 100kg with an effective freeze drying area of 10m2. It is applicable to the freeze drying of produce, flowers, medicines, bio-products, chemical materials and liquid food.

We can customize the capacity and configurations of the BLK100kg lyophilization freeze dryer.

Freeze dried fruits and flowers
Parameters
Model BLK100kg
Shape and Size Square 4700*1800*2300mm
Installed Power 26kw- actual usage generally ranges between 60 60 80% of the full power, i.e 15-20kW.
Tray's Area 10.01m2
Shelf 8
Cold Trap Temperature -45℃~-60℃
Vacuum Degree ≥1Pa
Heating way silicone oil electric heating
Capacity 100KG

* Not only do we offer the above models, but we can customize the freeze dryers to have a 0.5m2-200m2 effective freeze-drying area based on customer requirements.

Features
  • Different from traditional drying equipment that requires an additional quick freeze machine or cold storage, this freeze dryer completes both freezing and drying.
  • It saves anywhere between 20 and 30% of energy when compared to other similar products available on the market today.
  • High automation degree: a single operator can operate multiple devices, saving labor costs.
  • The waste heat recovery system developed in house is used, saving operation costs.
Details
Compressor: compressor brands are primarily BOCK (Germany), FRASCOLD (Italy), and KOBELCO (Japan), each of which has an excellent freeze performance and reliability.
Vacuum pump: vacuum pump brands are primarily TUTHILL KINNEY (USA), LEYBOLD, and ULVAC (Japan), each of which has an excellent accuracy and vacuum effect.

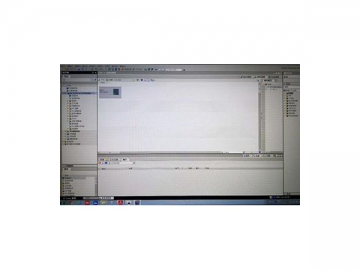

  • All devices can be controlled manually and automatically on screen.
  • Display, store and viewing of a variety of temperatures, vacuum degree and corresponding curves, all simultaneously.
  • Fault-alarming function

Index
freeze dryer, lyophilizer, freeze preservation dyer, commercial dryer, industrial freeze dryer
