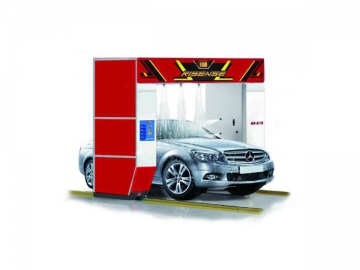

Single Arm Touchless Car Wash Machine HP-231
The single arm touchless car wash machine is the independently researched and developed full automatic intelligent touch free car wash system integrated with the washing and maintaining together. It has the following functions: chassis washing, car pre-washing, wipe-free shampoo spraying, high pressure water washing, bright wax coating and rapid air drying, etc.
- Chassis washing
- Car pre-washing
- Wipe-free shampoo spraying
- High pressure water washing
- Foaming shampoo washing
- High pressure water washing
- Bright wax coating
- Rapid air drying
LCD screen and voice prompts
| Overall dimension（mm） | 7600*3315*3100mm（with chassis wash） 7200*3315*3100mm(without chassis wash） |
| Installation size | 7600*3500*3300mm(with chassis wash） 7400*3500*3300mm（without chassis wash） |
| Equipment room | 4000*1500(mm) |
| Voltage | Three phase 380V 50HZ |
| Power | Total power without dryer: 20kw Maximum 20kw when working Total power with dryer: 42kw, maximum: 22kw when working |
| Water pump pressure | 7-12MPa |
| Air pressure | 0.5MPa |
| Available car to wash | Car/jeep/others within 7 seats |
| Car washing size | 5300*2200*2050(mm) |
| Washing time | Normal washing 3min/set, fine washing: 5min/set |
| Water consumption | 150L/set |
| Power consumption | 0.95KWh/set |
| Shampoo consumption | 25-60ml/set |
| Touch free automobile detergent | 20-50ml/set |
| Bright wax consumption | 20-40ml/set |
Unique design
1) The appearance is streamlined and beautiful, simple and fashionable and combines practicability and beauty.
2) The overall structure is smooth and the structure of the walking trolley is reasonable. The running of the car washing equipment is with high stability and is safer to use.
3) The material selected is exquisite, strong and light, simple and durable.
4) CAE computer aided simulation design makes the angle and location of the nozzle reasonably displayed to prevent the offset current from reducing the washing effect and to fully cover the car body in 360 degrees.
5) With the intelligent car distance estimation and safe anti-collision protection function, the car can be washed with equal pressure, equal distance and uniform speed.
Good effect
1) The 7-type swing arm is designed in different positions on the top and bottom to reduce the impact force of water flow in the horizontal and vertical directions so as to achieve better cleaning effects.
2) The steps of automatic mixing and high-pressure atomization of the wipe-free automobile detergent and water forms the micro granular water mist to spray the car surface and have full contact including the dirt in the gaps of the car body.
3) The crystal coating wax can form a layer of high molecular polymer on the surface of the car paint, which becomes a hard protective film after being fused with soft water. It not only makes the car paint brighter, but also protects the car paint for a longer time.
4) Externally firmly fixed 4 groups of 4kw turbine multi blade air drying system with high air pressure adopts aerodynamic principle and international technology. They will form wind curtain wall which improves the drying effect.
