6-Cylinder Marine Engine (330~540kW)
Request a Quote
About Us: http://jinanengine.com/4-6-Cylinder.html
Features of 6-Cylinder Marine Engine
- Proven reliability, easy operation;
- Lower cost of ownership, easier serviceability;
- Net weight: 3960Kg, 4500Kg;
- Rated power: 330~450kW;
- Different types are available to meet customers' requirements
Applications
This propulsion engine is widely used in fishing boats, harbor boats, transportation ships and some medium and small power stations.
Click Here to

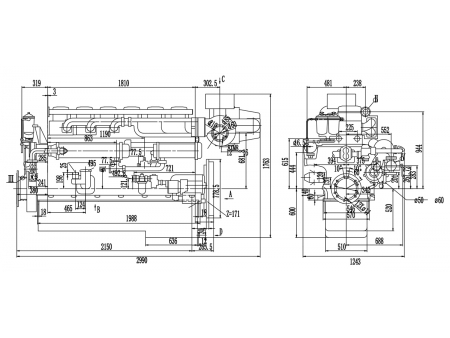

The project drawing of exterior view and interface size
Technical parameters
Model | Rated power (kW) | Rated rpm (r/min) | Fuel consumption (g/kW.h) | Oil consumption (g/kW.h) | Overall dimensions (mm) | Net weight (kg) |
6190ZLC | 450 | 1450 | ≤204 | ≤1.2 | 2990×1243×1763 | 3960 |
6190ZLC-1 | 400 | 1200 | ≤204 | ≤1.2 | 2990×1243×1763 | 3960 |
6190ZLCZ-2 | 330 | 1000 | ≤204 | ≤1.2 | 2990×1243×1763 | 3960 |
6190ZLC-3 | 400 | 1300 | ≤204 | ≤1.2 | 2990×1243×1763 | 3960 |
B6190ZLC | 450 | 1450 | ≤204 | ≤1.2 | 3000×1324×1820 | 3960 |
B6190ZLCZ-R | 450 | 1450 | ≤204 | ≤1.2 | 3000×1324×1820 | 3960 |
B6190ZLC-1 | 400 | 1200 | ≤204 | ≤1.2 | 3000×1324×1820 | 3960 |
B6190ZLCZ-1R | 400 | 1200 | ≤204 | ≤1.2 | 3000×1324×1820 | 3960 |
B6190ZLC-2 | 330 | 1000 | ≤204 | ≤1.2 | 3000×1324×1820 | 3960 |
B6190ZLCZ-2R | 330 | 1000 | ≤204 | ≤1.2 | 3000×1324×1820 | 3960 |
B6190ZLC-3 | 400 | 1300 | ≤204 | ≤1.2 | 3000×1324×1820 | 3960 |
B6190ZLCZ-3R | 400 | 1300 | ≤204 | ≤1.2 | 3000×1324×1820 | 3960 |
G6190ZLC | 540 | 1450 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLCZ-R | 540 | 1450 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLC-R | 540 | 1450 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLCZ | 540 | 1450 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLC-1 | 450 | 1200 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLCZ-1R | 450 | 1200 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLC-1R | 450 | 1200 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLCZ-1 | 450 | 1200 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLC-2 | 380 | 1000 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLCZ-2R | 380 | 1000 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLC-2R | 380 | 1000 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLCZ-2 | 380 | 1000 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLC-3 | 480 | 1300 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLCZ-3R | 480 | 1300 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLC-3R | 480 | 1300 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
G6190ZLCZ-3 | 480 | 1300 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 |
CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
