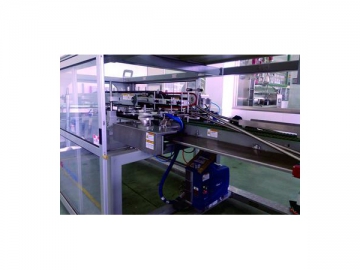

YCZX45 Case Packer, Case Packing Machine

YCZX45 Case Packer, Case Packing Machine
YCZX45 Case Packer, Case Packing Machine
YCZX45 Case Packer, Case Packing Machine
YCZX45 Case Packer, Case Packing Machine
YCZX45 Case Packer, Case Packing Machine
YCZX45 Case Packer, Case Packing Machine
Request a Quote

Application
The YCZX45 wrap around case packer's production capacity is 40 cases/min, which is suitable for carton packaging on bottle (can) production lines for beer, other beverages, bottled water, medicine, food, and more. With this packaging method, users can save about 1/5 of the cost of packaging materials when compared to traditional packaging methods.

Technical parameters
Equipment model YCZX45
Machine dimension L12380mm *W1960mm *H2300mm
Formed carton dimension 520 < L+W+H < 1000
Production capacity 40 cases/min
Working voltage/power 380V, 50Hz/16KW three phase
Hot melt adhesive solidify time 1.5~2S
Working air pressure 0.6~0.8Mpa
Machine weight 7000kg
Bottle height 110~230mm
Bottle diameter ф50~180mm
Features
  • Using internationally known hot melt adhesive equipment, operation is easy and the equipment is durable.

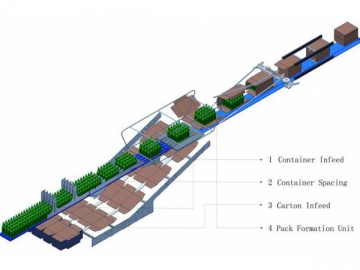

  • Advanced technology, including reasonable mechanical structure of linear bottle and board feeding, reliable pneumatic device and advanced electric-control technology.
