Description

To fulfill decking manufacturer’s high quality deck production demand, we provide floor deck rollforming line and decking rollformers with high precision rollers can roll form 0.8mm to 1.2mm galvanized steel sheets into different shapes like V shape, U shape and trapezoid shape. The roll forming speed reaches up to 15m/min. Floor decking roll former is easy to operate and control, allowing workers to master in a short period so as to enhance production efficiency.

Specifications
Machine Specifications
Weight About 15000kgs
Size About 16m *1.8m *1.5m (Length *Width *Height)
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 0.8-1.2 mm
Yield Strength 235 Mpa
Main Technical Parameters
Roll Forming Speed 10-15/min

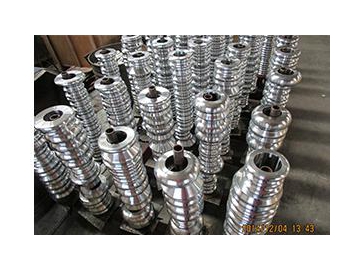

Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment

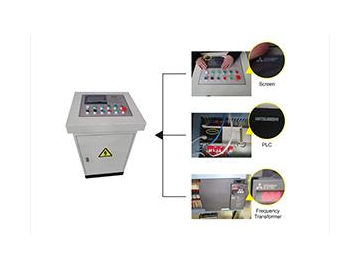

Controlling system PLC and Converter
Electric Power requirement Main motor power: 2*11 kw
Hydraulic unit motor power: 5.5 kw
Electric voltage According to customer's requirement

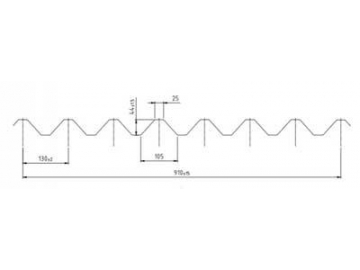

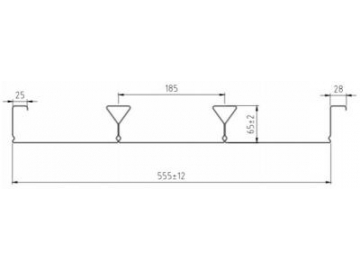

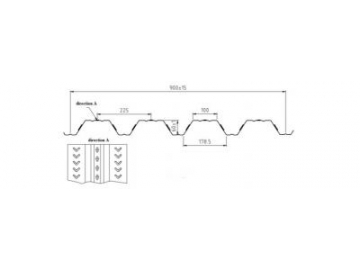

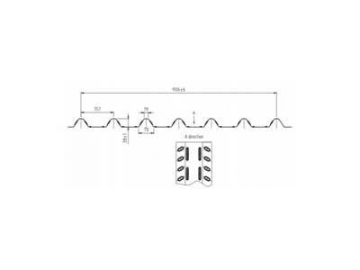

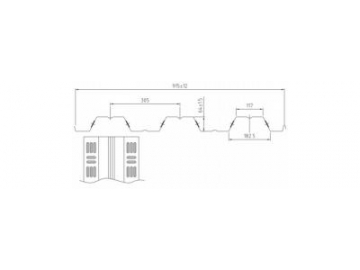

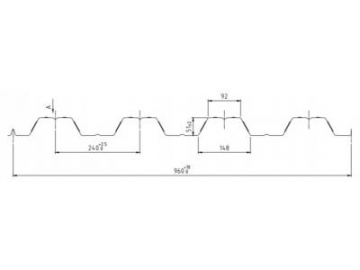

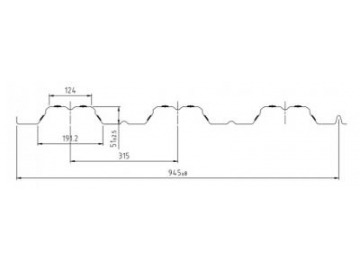

10 standard floor decking profiles are available and we can make custom profiles according to your requirements on profile, raw material, width range and other aspects.
